Anyfeeder DS Place – compact all-in-one solution for your production_
Anyfeeder – automated sorting, detection and feeding
Anyfeeder for automated part handling in your production
The DS Place equips machines fully automatically with components – fast, precise and gentle.
The integrated material hopper holds several hundred parts and keeps production running for hours.
One type for direct feeding or two types for automatic sorting: The DS Place detects, separates and reliably transfers each part to the right position.
Advantages of the compact DS Place Anyfeeder
- 🔌 Plug & Play: Set up, connect, start
- 🚀 High speed: up to 1,200 parts per hour
- 🤲 Gentle part handling – sensitive components are not damaged
- ⚙️ Flexible use in electronics, automotive and plastics manufacturing
- 🖥️ Intuitive operation via HMI with real-time status displays
- 🔗 Seamless integration thanks to PN/PN coupler and TCP/IP
- 💡 Efficient design – operates completely without costly compressed air
- 📦 Large material hopper: up to 500 parts for several hours of autonomous runtime

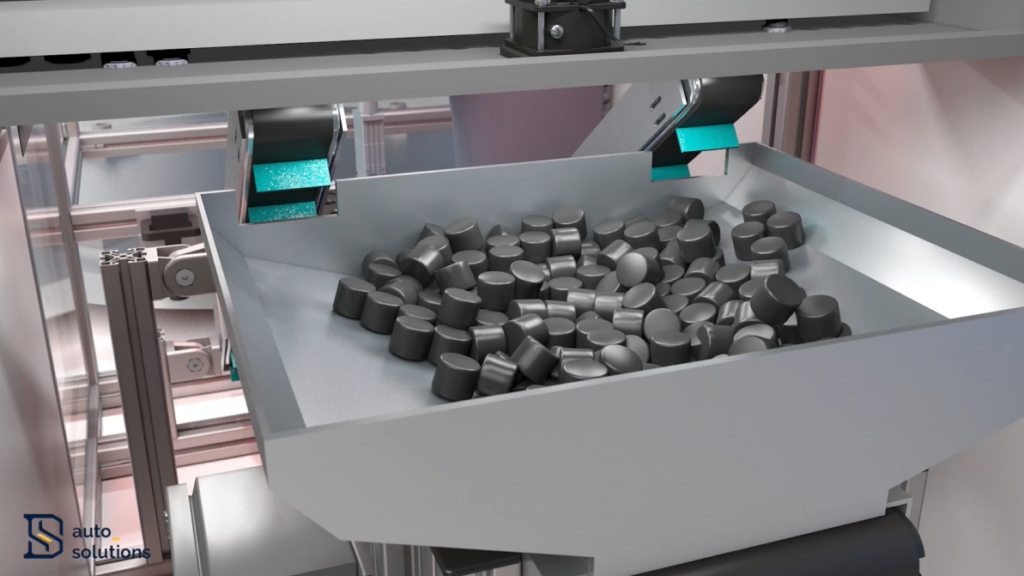

The component hopper of the feeding system provides space for several hundred small parts and can be easily refilled. Automatic refilling is optionally available and enables operation without interruption. The parts are handled gently to avoid any potential damage. This makes the hopper suitable even for sensitive components and ensures a continuous, trouble-free production process.
In addition, the hopper can be loaded with different types of parts.
The system will reliably detect all types and sort them accordingly.
Plenty of space – the component hopper_

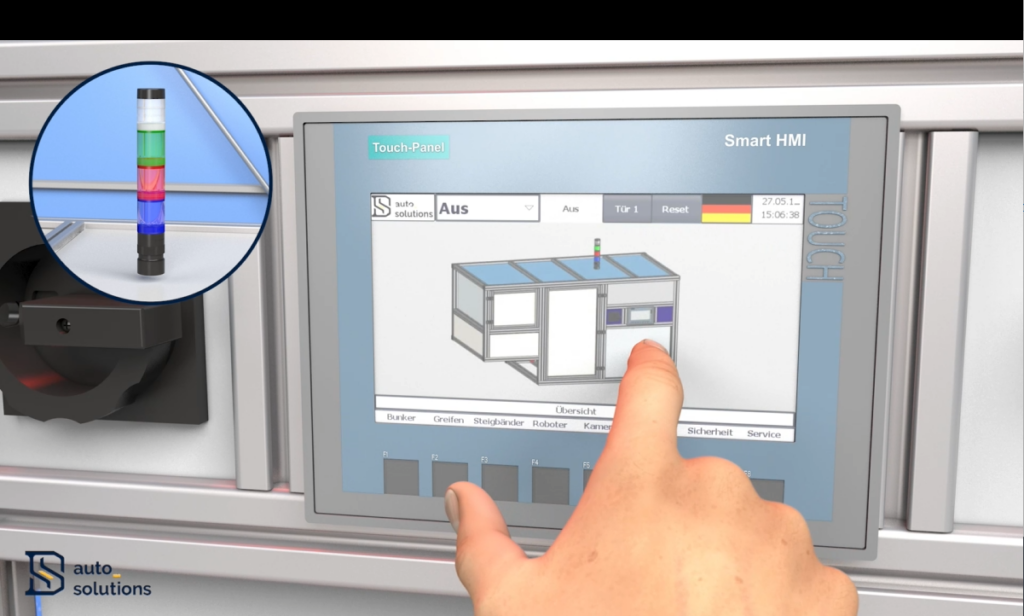

Full control – the HMI panel_
The HMI panel provides the operator with full control over the entire system process and an intuitive, easy-to-use interface. Statistics, warnings and faults are clearly displayed, ensuring that the system status is always visible. Several operating profiles can be created and saved. When the system starts, the desired profile is activated, and the drives receive their setpoints from this profile.
The HMI panel thus offers flexibility and control for efficient and safe production processes.
Precise & fast – the feeding_

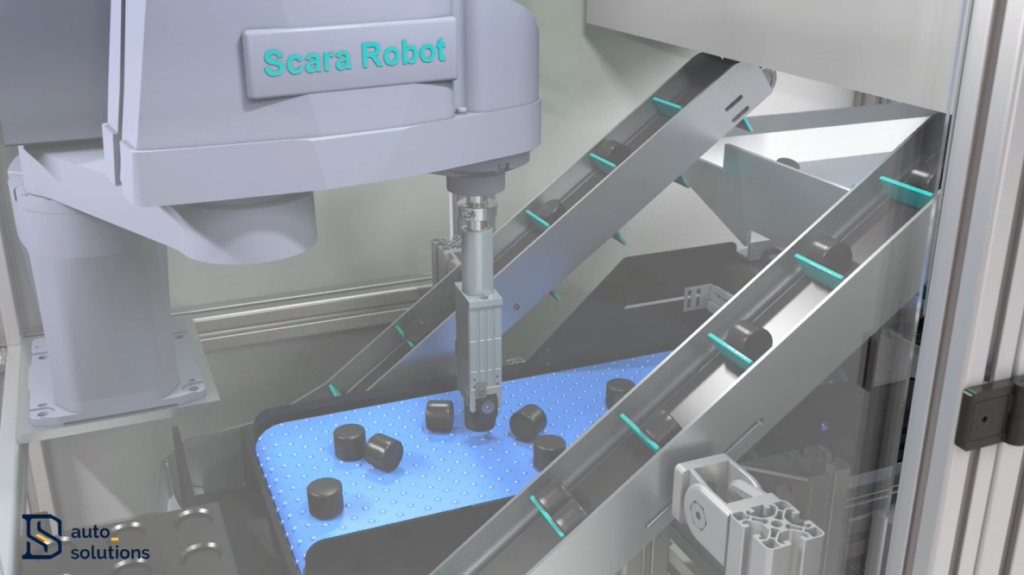

Robot picking – fast, precise and gentle
Our robotic feeding system ensures fast and accurate picking and placing of components. With the help of an integrated camera, part positions are detected, enabling exact handling. The placement of components is carried out with high precision.
The system is equipped with a PN/PN coupler interface. In addition, part data can be transmitted via TCP/IP to a higher-level system to ensure seamless integration into your production environment.
No setup time –
ready for operation immediately_
A key advantage of our feeding system is seamless commissioning.
Before delivery, the machine is set up by us for the components to be processed, and the interface to the downstream system is programmed.
This means that no setup time is required at your site – the machine only needs to be installed and is immediately ready for operation. This advantage saves time and resources and enables a smooth production start.

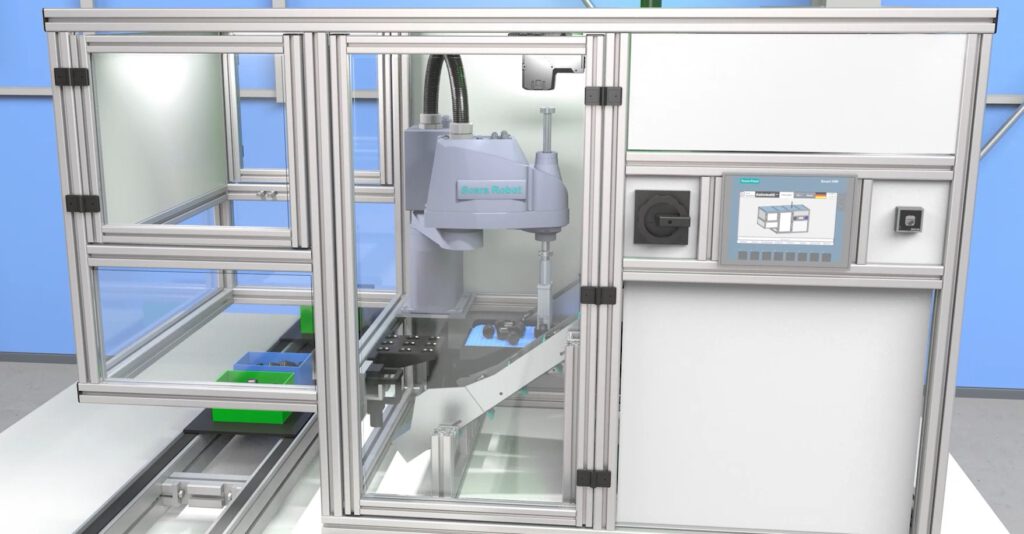

Compact design and Industry 4.0 compatibility_
Our feeding system has been specially developed for the requirements of modern production environments. With a compact size of 1.50 m in length, 1 m in width and 1 m in height, it can be easily integrated into existing production lines without taking up much space. Thanks to its robust design, it also meets all industry standards and is built for continuous operation.
The feeding system is also fully Industry 4.0 compatible. This means it can be seamlessly integrated into modern, connected production environments and communicate with other machines via standardized interfaces. Comprehensive automation minimizes the need for manual intervention and ensures a smooth and efficient production process.
A feeding system that sets new standards_
We are convinced that there is no comparable feeding system on the market that combines so many functions in one compact and efficient solution. The combination of high speed, precision and flexibility makes our feeding system the ideal solution for companies looking to optimize their production while meeting the highest quality standards.
Rely on the future of automated sorting – rely on our innovative feeding system. Contact us today to learn more about the opportunities this machine offers your company. Together, we will take your production to
